Product Characteristics

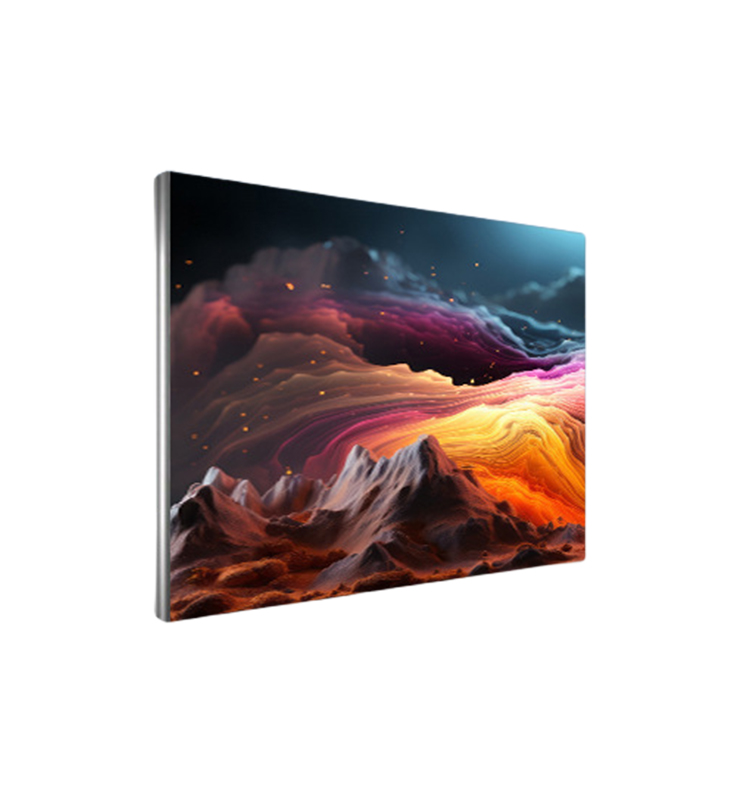

The IP waterproof high-definition full-color P2.5 outdoor display screen is highly favored in the outdoor display field due to its outstanding performance.

In terms of water and dust resistance, the IP water resistance rating endows it with outstanding protection capabilities, effectively resisting the invasion of rain and dust. Even in the face of severe weather conditions such as heavy rain and sandstorms, it can operate stably, avoiding problems such as short circuits and component damage caused by water vapor and dust entering the display screen interior. This greatly extends the service life of the equipment and ensures long-term reliable operation in various outdoor environments.

High-definition display effect is one of its major highlights. P2.5 refers to a pixel pitch of 2.5 millimeters. The high-density pixel arrangement enables high-resolution image output, capable of delicately presenting rich colors and clear details. Whether it is playing advertising videos, live events, or displaying graphic and text information, it can bring immersive visual experiences to the audience with realistic color reproduction and precise picture presentation. Even when watched from a distance, the content of the picture can be clearly captured.

The full-color display function makes the picture more vivid and lively. Through the precise proportioning and mixing of the three primary colors of red, green and blue, over 16 million colors can be presented. The color transitions in the picture are natural, with a strong sense of layering, effectively enhancing the visual impact. Whether it is a dazzling advertising poster or a colorful dynamic picture, they can all be perfectly presented, enhancing the effect of information dissemination.

In addition, this display screen also has an automatic brightness adjustment function. It can automatically adjust the screen brightness according to the intensity of the ambient light, ensuring a clear and visible picture while reducing energy consumption. It supports remote control and data transmission, allowing users to update display content anytime and anywhere, meeting diverse outdoor display needs. It is widely used in outdoor advertising, square information display, traffic guidance and other scenarios.

Product Parameter

Module size: 320mm*160mm

Module resolution: 128 points *64 points

Maximum power consumption: The maximum power consumption of the unit product is ≤32W per block, or the maximum per square meter

High power consumption: ≤860W/m ²

Average power consumption: 280W/m ²

Power consumption in sleep mode: When the display screen is black and not lit, the power consumption is ≤5W per block; when it is black, it is ≤120W/m ²

Power supply mode: DC4.2V to DC5V

Electrical protection: Through tests such as overcurrent, open circuit, short circuit, overvoltage, undervoltage, over-temperature, overload, and power failure

Maximum brightness: ≥3000cd/m²

Brightness uniformity: IGU≥95%

Chromaticity uniformity: within ±0.002

Deviation of the center distance of the light-emitting point: ≤1%

Contrast ratio: ≥8000:1

Viewing Angle: Horizontal viewing Angle ≥140°, vertical viewing Angle ≥140°

Brightness adjustment: It supports the function of automatically adjusting the brightness according to the change of ambient illuminance. It also supports stepless adjustment from 0 to 100% through the accompanying software and gray-scale adjustment from 0 to 255 levels

Color temperature: White balance 6500K±5%

Color temperature error: When the color temperature is 6500K, the color temperature error of the 100%, 75%,50%, and 25% four-level plain white field adjustment is ≤200K

Operating ambient temperature: -10℃ to 40℃

Operating environment humidity: 10% to 90%RH, no condensation
