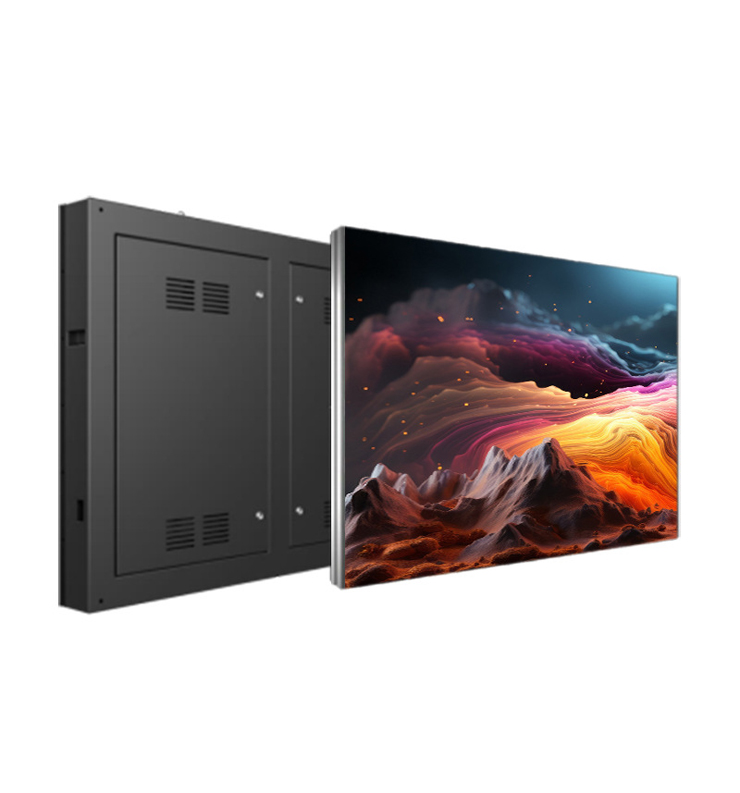

The outdoor P8.0 full-color small-pitch display screen is an important product in the outdoor display field, meeting the demands of diverse scenarios with its unique performance.
Product Characteristics
The outdoor P8.0 full-color small-pitch display screen is an important product in the outdoor display field, meeting the demands of diverse scenarios with its unique performance.
High-definition display, visual impact: P8.0 indicates a pixel pitch of 8 millimeters. Although it is not as fine as indoor ultra-small-pitch displays, it can still present clear and detailed images in outdoor environments. It supports full-color display, with rich and full colors. It can accurately reproduce the true colors of images and videos. Its high brightness feature makes it clearly visible even under direct sunlight. Even when viewed from a distance, the picture details and color expression remain excellent, bringing a stunning visual experience.
Stable and durable, suitable for outdoor use: Equipped with high-quality LED beads and superior electronic components, it features excellent waterproof, dustproof and moisture-proof performance, with a protection level of IP65 or above. It can effectively withstand adverse weather conditions such as heavy rain and sandstorms, and adapt to extreme environments like high temperatures and severe cold. Meanwhile, it has a good heat dissipation design, which can operate stably for a long time, reduce the failure rate, extend the service life and lower the maintenance cost.
Flexible installation and wide application: Supports multiple installation methods, such as wall-mounted, column-mounted, and inlaid, allowing for flexible selection based on different scenarios and requirements. It is often used for outdoor advertising and promotion to attract the attention of passers-by. Traffic information release, real-time display of road conditions and bus information; Live streaming of sports events enables viewers to keep abreast of the latest game developments in a timely manner. It can also be used as the background for large-scale event stages, creating a lively atmosphere and playing an important role in the field of outdoor displays.
Product Parameter
Point spacing(mm) | 4 | 5 | 6.66 | 8 | 10 |
Pixel density | 62500 | 40000 | 22500 | 15625 | 10000 |
Module size(mm) | 320*160 | ||||
Module resolution | 80x40 | 64x32 | 48x24 | 40x20 | 32x16 |
Scanning method | 1/20 | 1/16 | 1/12 | 1/10 | 1/8 |
Surface hardness | 4H | ||||
Surface treatment | Matte black face | ||||
Box size(mm) | 1280x960 | ||||
Box resolution | 320x240 | 256x192 | 192x144 | 160x120 | 128x96 |
Box weight(kg) | 37 | ||||
Box material | Sheet metal iron | ||||
Control system | Nova | ||||
White balance luminance (cd/m) | 4500-5500 | 5000-5500 | 5500-6000 | 5500-6000 | 6000-6500 |
Refresh rate(HZ) | ≥3840 | ||||
Contrast | 80000:1 | ||||
Color temperature | 6500K(adjustable from 1000 to 20000K) | ||||
Viewing Angle(° | 140/140 | ||||
Maximum power(w/m) | 860 | ||||
Average power(w/m) | 270 | ||||
Installation/maintenance method | Pre-maintenance | ||||
Working temperature range | -10℃~+60℃ | ||||
Working humidity range | 10%RH~90%RH | ||||
Storage temperature range | -20℃~+60℃ | ||||
Storage humidity range | 10%RH~90%RH |
